• Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionFIXED IND 680UH 420MA 2.2 OHM TH
  • CategoryFixed Inductors
  • ECAD Model
  • Share
In Stock: 312

Can ship immediately

Pricing:
  • 1$1.3
  • 140$1.021

Quote It

Technical Details

  • Series:WE-TI
  • Package:Tray
  • Part Status:Active
  • Type:Wirewound
  • Material - Core:Ferrite
  • Inductance:680 µH
  • Tolerance:±10%
  • Current Rating (Amps):420 mA
  • Current - Saturation (Isat):750mA
  • Shielding:Unshielded
  • DC Resistance (DCR):2.2Ohm Max



  • Q @ Freq:-
  • Frequency - Self Resonant:2.3MHz
  • Ratings:-
  • Operating Temperature:-40°C ~ 125°C
  • Inductance Frequency - Test:1 kHz
  • Features:-
  • Mounting Type:Through Hole
  • Package / Case:Radial, Vertical Cylinder
  • Supplier Device Package:-
  • Size / Dimension:0.307" Dia (7.80mm)
  • Height - Seated (Max):0.295" (7.50mm)

Related Products


P1812-183K

FIXED IND 18UH 400MA 875 MOHM

P1812-183K Datasheet
  • 1: $2.49000
  • 500: $ 1.12880
  • 1000: $1.02920

SPM10054T-1R5M-HZ

FIXED IND 1.5UH 20A 5.39MOHM SMD

SPM10054T-1R5M-HZ Datasheet
  • 1: $2.75000

SPM10054T-330M-HZ

FIXED IND 33UH 5.3A 82.13 MOHM

SPM10054T-330M-HZ Datasheet
  • 1: $2.75000

744373580033

FIXED IND 330NH 18.5A 2.15 MOHM

  • 1: $2.08000
  • 800: $ 1.31700

VLBS1007083T-R18L

FIXED IND 180NH 70A 0.18 MOHM

VLBS1007083T-R18L Datasheet
  • 1: $2.44000

744777239

FIXED IND 390UH 380MA 2.85 OHM

  • 1: $1.35501
  • 1000: $ 1.35500

768772681

FIXED IND 680UH 520MA 1.68 OHM

  • 1: $1.36000
  • 140: $ 1.07500

768772221

FIXED IND 220UH 900MA 600 MOHM

  • 1: $1.36000
  • 140: $ 1.07500

768772471

FIXED IND 470UH 600MA 1.32 OHM

  • 1: $1.36000
  • 140: $ 1.07500

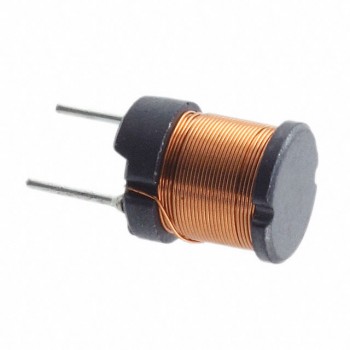

768772331
