CIGT252010LMR68MNE
Samsung Electro-Mechanics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 680NH 3.3A 45MOHM SMD
- CategoryFixed Inductors
- Datasheet CIGT252010LMR68MNE Datasheet
-
ECAD Model
- Share
In Stock: 789
Can ship immediately
Pricing:
- 1$0.18
- 3,000$0.06646
- 6,000$0.06276
- 15,000$0.05907
- 30,000$0.05723
- 75,000$0.05538
- 150,000$0.05353
Quote It
Technical Details
- Series:CIGT
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Thin Film
- Material - Core:Metal Composite
- Inductance:680 nH
- Tolerance:±20%
- Current Rating (Amps):3.3 A
- Current - Saturation (Isat):4.5A
- Shielding:Unshielded
- DC Resistance (DCR):45mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:1 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1008 (2520 Metric)
- Supplier Device Package:1008 (2520 Metric)
- Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height - Seated (Max):0.039" (1.00mm)
Related Products

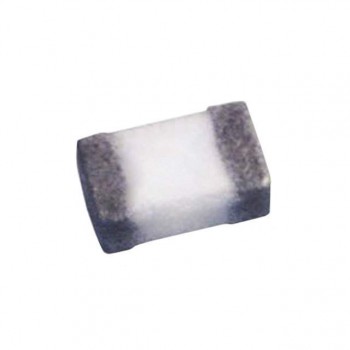

FIXED IND 180NH 100MA 3.7 OHM
