LQW2UASR12J00L
TOKO / Murata
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 120NH 650MA 630 MOHM
- CategoryFixed Inductors
- Datasheet LQW2UASR12J00L Datasheet
-
ECAD Model
- Share
In Stock: 461
Can ship immediately
Pricing:
- 1$0.22
- 2,000$0.09
- 4,000$0.085
- 6,000$0.08
- 10,000$0.0775
- 50,000$0.0725
- 100,000$0.07
Quote It
Technical Details
- Series:LQW2
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Air
- Inductance:120 nH
- Tolerance:±5%
- Current Rating (Amps):650 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):630mOhm Max
- Q @ Freq:60 @ 350MHz
- Frequency - Self Resonant:950MHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:25 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1008 (2520 Metric)
- Supplier Device Package:1008 (2520 Metric)
- Size / Dimension:0.103" L x 0.096" W (2.62mm x 2.45mm)
- Height - Seated (Max):0.080" (2.03mm)
Related Products
FIXED IND 22UH 180MA 3.2 OHM SMD
NL453232T-220J-PF Datasheet- 1: $0.43000
- 500: $ 0.22660
- 1000: $0.18343

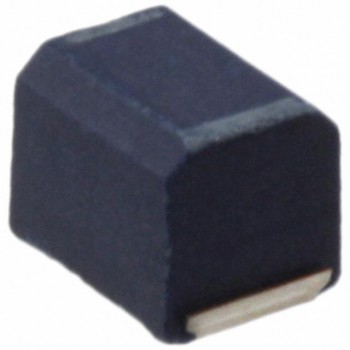

FIXED IND 220UH 100MA 10 OHM SMD
