NLV32T-R12J-EF
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 120NH 450MA 220 MOHM
- CategoryFixed Inductors
- Datasheet NLV32T-R12J-EF Datasheet
-
ECAD Model
- Share
In Stock: 550
Can ship immediately
Pricing:
- 1$0.24
- 2,000$0.09702
- 4,000$0.09163
- 6,000$0.08624
- 10,000$0.08355
- 50,000$0.07816
- 100,000$0.07546
Quote It
Technical Details
- Series:NLV-EF
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:120 nH
- Tolerance:±5%
- Current Rating (Amps):450 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):220mOhm Max
- Q @ Freq:30 @ 25.2MHz
- Frequency - Self Resonant:500MHz
- Ratings:-
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:25.2 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1210 (3225 Metric)
- Supplier Device Package:1210
- Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height - Seated (Max):0.094" (2.40mm)
Related Products

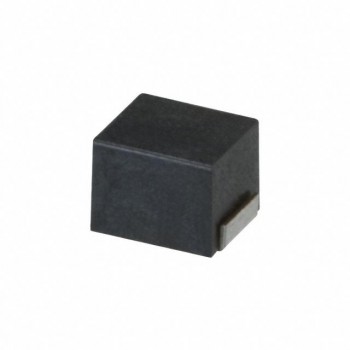

FIXED IND 15NH 460MA 160 MOHM
- 1: $0.24000

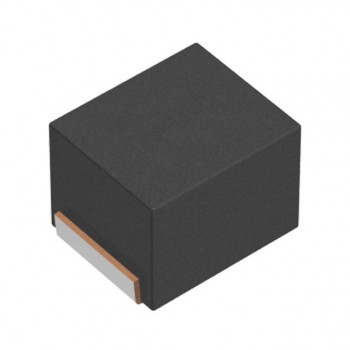

FIXED IND 1UH 800MA 237.5MOHM SM
- 1: $0.25000

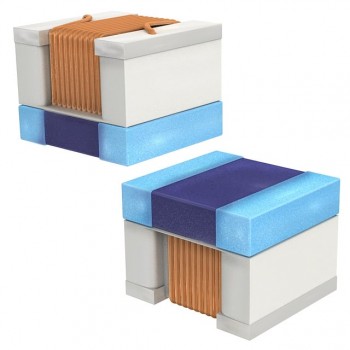

FIXED IND 56NH 1A 180 MOHM SMD
