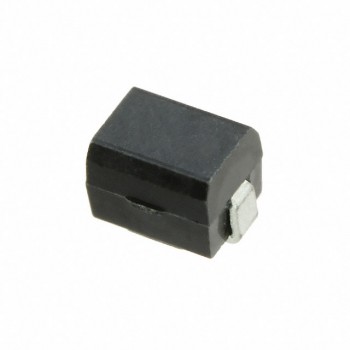

744764902
Würth Elektronik Midcom
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.2UH 1.1A 260 MOHM
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 495
Can ship immediately
Pricing:
- 1$0.39
- 1,000$0.37732
Quote It
Technical Details
- Series:WE-GFH
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:-
- Material - Core:Iron Powder
- Inductance:2.2 µH
- Tolerance:±20%
- Current Rating (Amps):1.1 A
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):260mOhm Max
- Q @ Freq:25 @ 1.25MHz
- Frequency - Self Resonant:100MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:1.25 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.134" L x 0.098" W (3.40mm x 2.50mm)
- Height - Seated (Max):0.094" (2.40mm)
