36502C12NJTDG
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 12NH 1A 90 MOHM SMD
- CategoryFixed Inductors
- Datasheet 36502C12NJTDG Datasheet
-
ECAD Model
- Share
In Stock: 624
Can ship immediately
Pricing:
- 1$0.41
- 2,000$0.17197
- 4,000$0.16186
- 6,000$0.1568
- 10,000$0.15174
- 50,000$0.14162
Quote It
Technical Details
- Series:3650, Sigma Inductors
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:-
- Inductance:12 nH
- Tolerance:±5%
- Current Rating (Amps):1 A
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):90mOhm Max
- Q @ Freq:50 @ 500MHz
- Frequency - Self Resonant:3.3GHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:50 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:1008 (2520 Metric)
- Size / Dimension:0.115" L x 0.110" W (2.92mm x 2.79mm)
- Height - Seated (Max):0.083" (2.10mm)
Related Products
FIXED IND 47UH 950MA 680 MOHM TH
B78108E1473J000 Datasheet- 1: $0.41000
- 5000: $ 0.15888
- 10000: $0.15375
FIXED IND 10NH 200MA 1.3 OHM SMD
- 1: $0.41000
- 10000: $ 0.14000
FIXED IND 1.2UH 1A 120 MOHM SMD
NLC453232T-1R2K-PF Datasheet- 1: $0.41000
- 500: $ 0.21736
- 1000: $0.17595

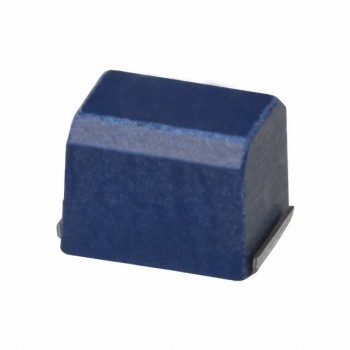

FIXED IND 82UH 200MA 3.5 OHM SMD
