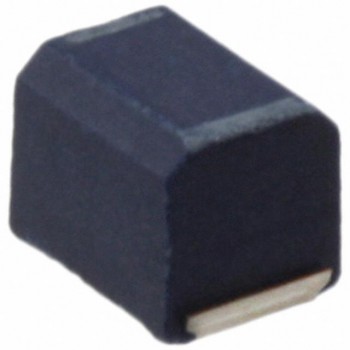

NL453232T-821J-PF
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 820UH 30MA 35 OHM SMD
- CategoryFixed Inductors
- Datasheet NL453232T-821J-PF Datasheet
-
ECAD Model
- Share
In Stock: 492
Can ship immediately
Pricing:
- 1$0.43
- 500$0.2266
- 1,000$0.18343
- 2,500$0.17264
- 5,000$0.16725
- 12,500$0.16185
- 25,000$0.15646
- 50,000$0.15106
Quote It
Technical Details
- Series:NL
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Last Time Buy
- Type:Wirewound
- Material - Core:-
- Inductance:820 µH
- Tolerance:±5%
- Current Rating (Amps):30 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):35Ohm Max
- Q @ Freq:30 @ 796kHz
- Frequency - Self Resonant:2.5MHz
- Ratings:-
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:796 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1812 (4532 Metric)
- Supplier Device Package:1812
- Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
- Height - Seated (Max):0.134" (3.40mm)
