VLS252012ET-2R2M-CA
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.2UH 1.3A 154 MOHM
- CategoryFixed Inductors
- Datasheet VLS252012ET-2R2M-CA Datasheet
-
ECAD Model
- Share
In Stock: 1,040
Can ship immediately
Pricing:
- 1$0.53
- 2,000$0.2244
- 4,000$0.2112
- 6,000$0.2046
- 10,000$0.198
- 50,000$0.1848
Quote It
Technical Details
- Series:VLS-E-CA
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Not For New Designs
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:2.2 µH
- Tolerance:±20%
- Current Rating (Amps):1.3 A
- Current - Saturation (Isat):1.55A
- Shielding:Shielded
- DC Resistance (DCR):154mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:1 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1008 (2520 Metric)
- Supplier Device Package:1008 (2520 Metric)
- Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height - Seated (Max):0.047" (1.20mm)
Related Products
FIXED IND 47UH 440MA 1.5 OHM SMD
VLS3012ET-470M-CA Datasheet- 1: $0.53000
- 2000: $ 0.22440
- 4000: $0.21120
FIXED IND 1.5UH 1.5A 128 MOHM
VLS252010ET-1R5N-CA Datasheet- 1: $0.53000
- 2000: $ 0.22440
- 4000: $0.21120
FIXED IND 10UH 660MA 588 MOHM

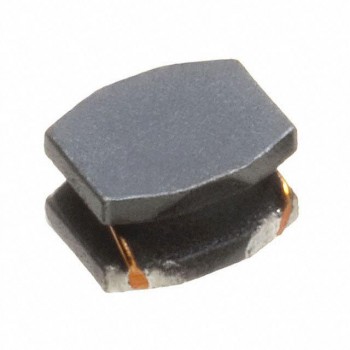

VLS252015ET-100M-CA Datasheet- 1: $0.53000
