SRP2510A-R22M
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 220NH 5.9A 12.5MOHM SM
- CategoryFixed Inductors
- Datasheet SRP2510A-R22M Datasheet
-
ECAD Model
- Share
In Stock: 217
Can ship immediately
Pricing:
- 1$0.53
- 3,000$0.1632
- 6,000$0.1596
Quote It
Technical Details
- Series:SRP2510A
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Iron Powder
- Inductance:220 nH
- Tolerance:±20%
- Current Rating (Amps):5.9 A
- Current - Saturation (Isat):7.9A
- Shielding:Shielded
- DC Resistance (DCR):12.5mOhm Max
- Q @ Freq:35 @ 1MHz
- Frequency - Self Resonant:170MHz
- Ratings:AEC-Q200
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:1 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1008 (2520 Metric)
- Supplier Device Package:1008
- Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height - Seated (Max):0.039" (1.00mm)
Related Products
FIXED IND 1.5UH 1.5A 128 MOHM
VLS252010ET-1R5N-CA Datasheet- 1: $0.53000
- 2000: $ 0.22440
- 4000: $0.21120
FIXED IND 10UH 660MA 588 MOHM
VLS252015ET-100M-CA Datasheet- 1: $0.53000
- 2000: $ 0.22440
- 4000: $0.21120

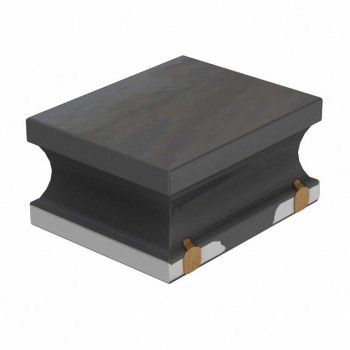

FIXED IND 6.8UH 880MA 558 MOHM
VLS201610HBX-6R8M-1 Datasheet- 1: $0.53000
- 2000: $ 0.22440
- 4000: $0.21120
FIXED IND 2.2UH 1.2A 190 MOHM
VLS252010ET-2R2M-CA Datasheet- 1: $0.53000
- 2000: $ 0.22440
- 4000: $0.21120

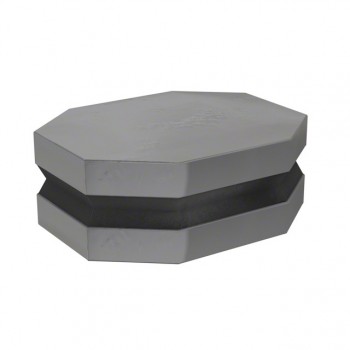

FIXED IND 1UH 1.9A 84 MOHM SMD
