LQH43MN3R9M03L
TOKO / Murata
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 3.9UH 500MA 380 MOHM
- CategoryFixed Inductors
- Datasheet LQH43MN3R9M03L Datasheet
-
ECAD Model
- Share
In Stock: 502
Can ship immediately
Pricing:
- 1$0.53
- 500$0.27574
- 1,000$0.22321
- 2,500$0.21008
- 5,000$0.20352
- 12,500$0.19695
- 25,000$0.19039
- 50,000$0.18382
Quote It
Technical Details
- Series:LQH43
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:3.9 µH
- Tolerance:±20%
- Current Rating (Amps):500 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):380mOhm Max
- Q @ Freq:20 @ 1MHz
- Frequency - Self Resonant:41MHz
- Ratings:-
- Operating Temperature:-40°C ~ 85°C
- Inductance Frequency - Test:1 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1812 (4532 Metric)
- Supplier Device Package:1812
- Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
- Height - Seated (Max):0.110" (2.80mm)
Related Products
FIXED IND 330NH 2.85A 39 MOHM
VLS201610HBX-R33M-1 Datasheet- 1: $0.53000
- 2000: $ 0.22440
- 4000: $0.21120
FIXED IND 330UH 600MA 1.603 OHM
ASPIAIG-S6055-331M-T Datasheet- 1: $0.53366
- 800: $ 0.47600
- 1600: $0.44800

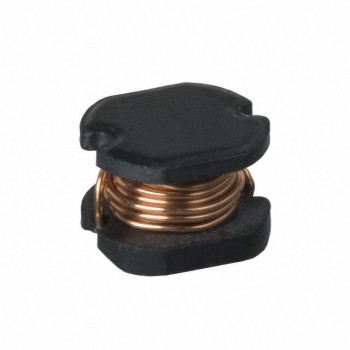

FIXED IND 39UH 1.1A 160 MOHM SMD
