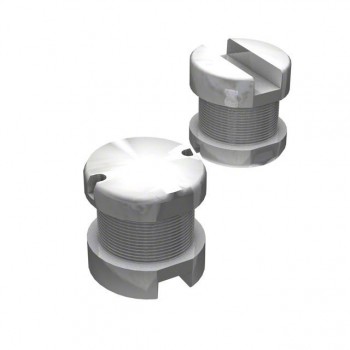

SDR0302-101KL
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 100UH 260MA 2.85OHM SM
- CategoryFixed Inductors
- Datasheet SDR0302-101KL Datasheet
-
ECAD Model
- Share
In Stock: 854
Can ship immediately
Pricing:
- 1$0.57
- 2,000$0.18785
- 4,000$0.1768
- 6,000$0.1729
Quote It
Technical Details
- Series:SDR0302
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:100 µH
- Tolerance:±10%
- Current Rating (Amps):260 mA
- Current - Saturation (Isat):280mA
- Shielding:Unshielded
- DC Resistance (DCR):2.85Ohm Max
- Q @ Freq:40 @ 796kHz
- Frequency - Self Resonant:10MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.118" L x 0.110" W (3.00mm x 2.80mm)
- Height - Seated (Max):0.110" (2.80mm)
