SDR0603-820KL

J.W. Miller / Bourns
In Stock: 561

Can ship immediately

Pricing:
  • 1$0.57
  • 400$0.25968
  • 800$0.1989
  • 1,200$0.18785
  • 2,800$0.1768
  • 10,000$0.1729

Quote It

Technical Details

  • Series:SDR0603
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Wirewound
  • Material - Core:Ferrite
  • Inductance:82 µH
  • Tolerance:±10%
  • Current Rating (Amps):400 mA
  • Current - Saturation (Isat):480mA
  • Shielding:Unshielded
  • DC Resistance (DCR):840mOhm Max



  • Q @ Freq:15 @ 2.52MHz
  • Frequency - Self Resonant:11MHz
  • Ratings:-
  • Operating Temperature:-40°C ~ 125°C
  • Inductance Frequency - Test:1 kHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:Nonstandard
  • Supplier Device Package:-
  • Size / Dimension:0.228" L x 0.228" W (5.80mm x 5.80mm)
  • Height - Seated (Max):0.154" (3.90mm)

Related Products


SDR0604-3R9ML

FIXED IND 3.9UH 1.9A 70 MOHM SMD

SDR0604-3R9ML Datasheet
  • 1: $0.57000
  • 400: $ 0.25968
  • 800: $0.19890

SDR0603-1R5ML

FIXED IND 1.5UH 3A 40 MOHM SMD

SDR0603-1R5ML Datasheet
  • 1: $0.57000
  • 400: $ 0.25968
  • 800: $0.19890

LQH43NN122J03L

FIXED IND 1.2MH 45MA 30 OHM SMD

LQH43NN122J03L Datasheet
  • 1: $0.57000
  • 500: $ 0.30072
  • 1000: $0.24344

LQH43NN681J03L

FIXED IND 680UH 65MA 17 OHM SMD

LQH43NN681J03L Datasheet
  • 1: $0.57000
  • 500: $ 0.30072
  • 1000: $0.24344

LQH43NN1R2M03L

FIXED IND 1.2UH 500MA 200 MOHM

LQH43NN1R2M03L Datasheet
  • 1: $0.57000
  • 500: $ 0.30072
  • 1000: $0.24344

LQH43NN391K03L

FIXED IND 390UH 90MA 9.7 OHM SMD

LQH43NN391K03L Datasheet
  • 1: $0.57000
  • 500: $ 0.30072
  • 1000: $0.24344

SDR0604-150YL

FIXED IND 15UH 1.3A 140 MOHM SMD

SDR0604-150YL Datasheet
  • 1: $0.57000
  • 400: $ 0.25968
  • 800: $0.19890

SDR0604-471KL

FIXED IND 470UH 210MA 3.3OHM SMD

SDR0604-471KL Datasheet
  • 1: $0.57000
  • 400: $ 0.25968
  • 800: $0.19890

LQH43NN102J03L

FIXED IND 1MH 50MA 25 OHM SMD

LQH43NN102J03L Datasheet
  • 1: $0.57000
  • 500: $ 0.30072
  • 1000: $0.24344

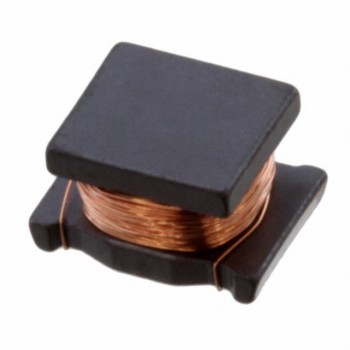

LQH43NN820J03L
