ELL-6PM9R1N
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 9.1UH 1.2A 77 MOHM SMD
- CategoryFixed Inductors
- Datasheet ELL-6PM9R1N Datasheet
-
ECAD Model
- Share
In Stock: 649
Can ship immediately
Pricing:
- 1$0.63
- 10$0.58532
- 25$0.54046
- 50$0.45038
- 100$0.42335
- 250$0.37832
Quote It
Technical Details
- Series:M
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:-
- Inductance:9.1 µH
- Tolerance:±30%
- Current Rating (Amps):1.2 A
- Current - Saturation (Isat):-
- Shielding:Shielded
- DC Resistance (DCR):77mOhm
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.236" L x 0.236" W (6.00mm x 6.00mm)
- Height - Seated (Max):0.079" (2.00mm)
Related Products

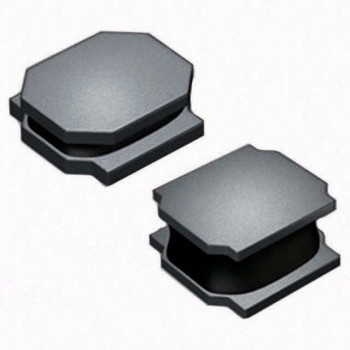

FIXED IND 3.3UH 1.3A 163 MOHM
- 1: $0.63000
- 2000: $ 0.33407

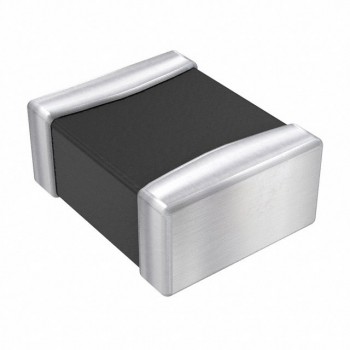

FIXED IND 10UH 800MA 522 MOHM
