B1047AS-101M=P3
TOKO / Murata
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 100UH 770MA 460 MOHM
- CategoryFixed Inductors
- Datasheet B1047AS-101M=P3 Datasheet
-
ECAD Model
- Share
In Stock: 1,426
Can ship immediately
Pricing:
- 1$0.68
- 1,000$0.29002
- 3,000$0.27296
- 5,000$0.26443
- 10,000$0.2559
- 25,000$0.24737
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:100 µH
- Tolerance:±20%
- Current Rating (Amps):770 mA
- Current - Saturation (Isat):940mA
- Shielding:Shielded
- DC Resistance (DCR):460mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 85°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:2-SMD
- Size / Dimension:0.299" L x 0.299" W (7.60mm x 7.60mm)
- Height - Seated (Max):0.197" (5.00mm)
Related Products

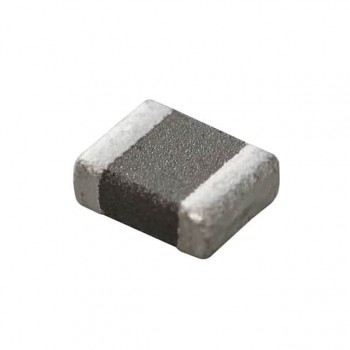

FIXED IND 82UH 165MA 2.04 OHM
