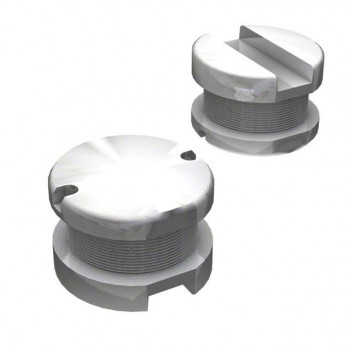

SDE0805A-150M
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 15UH 2.5A 90 MOHM SMD
- CategoryFixed Inductors
- Datasheet SDE0805A-150M Datasheet
-
ECAD Model
- Share
In Stock: 741
Can ship immediately
Pricing:
- 1$0.77
- 1,000$0.25432
- 3,000$0.23936
- 5,000$0.23408
Quote It
Technical Details
- Series:SDE0805A
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:15 µH
- Tolerance:±20%
- Current Rating (Amps):2.5 A
- Current - Saturation (Isat):2.2A
- Shielding:Unshielded
- DC Resistance (DCR):90mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:22.5MHz
- Ratings:AEC-Q200
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:1 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.307" L x 0.276" W (7.80mm x 7.00mm)
- Height - Seated (Max):0.217" (5.50mm)
Related Products

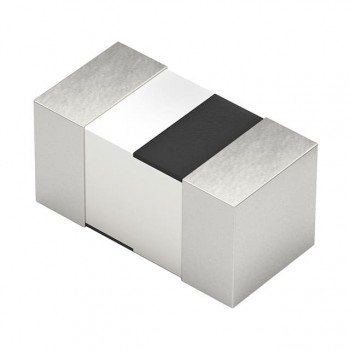

FIXED IND 10NH 600MA 450 MOHM
