SDR0805-271KL
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 270UH 420MA 1.11OHM SM
- CategoryFixed Inductors
- Datasheet SDR0805-271KL Datasheet
-
ECAD Model
- Share
In Stock: 543
Can ship immediately
Pricing:
- 1$0.7
- 1,000$0.2312
- 3,000$0.2176
- 5,000$0.2128
Quote It
Technical Details
- Series:SDR0805
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:270 µH
- Tolerance:±10%
- Current Rating (Amps):420 mA
- Current - Saturation (Isat):660mA
- Shielding:Unshielded
- DC Resistance (DCR):1.11Ohm Max
- Q @ Freq:12 @ 796kHz
- Frequency - Self Resonant:5MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.307" L x 0.307" W (7.80mm x 7.80mm)
- Height - Seated (Max):0.209" (5.30mm)
Related Products
FIXED IND 10NH 600MA 450 MOHM
- 1: $0.70000
FIXED IND 1.5UH 8.5A 13 MOHM SMD

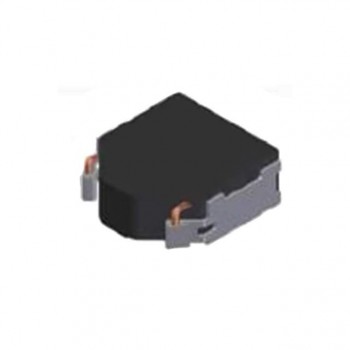

FDSD0630-H-1R5N=P3 Datasheet- 1: $0.74000
