SRN8040TA-2R2Y
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.2UH 7.4A 11.5MOHM SM
- CategoryFixed Inductors
- Datasheet SRN8040TA-2R2Y Datasheet
-
ECAD Model
- Share
In Stock: 1,020
Can ship immediately
Pricing:
- 1$0.76
- 1,000$0.2312
- 3,000$0.2176
- 5,000$0.2128
Quote It
Technical Details

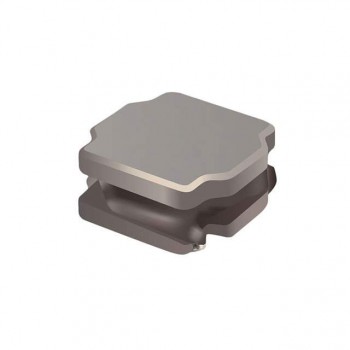

- Series:SRN8040TA
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:2.2 µH
- Tolerance:±30%
- Current Rating (Amps):7.4 A
- Current - Saturation (Isat):9.8A
- Shielding:Semi-Shielded
- DC Resistance (DCR):11.5mOhm
- Q @ Freq:15 @ 1MHz
- Frequency - Self Resonant:57MHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:1 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.315" L x 0.315" W (8.00mm x 8.00mm)
- Height - Seated (Max):0.177" (4.50mm)
Related Products

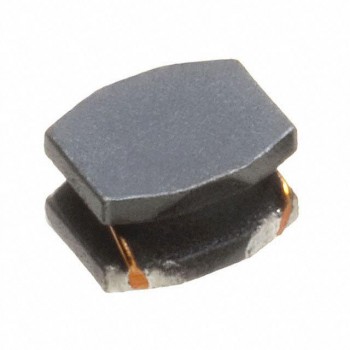

FIXED IND 1UH 1.7A 82 MOHM SMD
