• Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionFIXED IND 2.2UH 1.6A 110 MOHM
  • CategoryFixed Inductors
  • ECAD Model
  • Share
In Stock: 649

Can ship immediately

Pricing:
  • 1$0.8
  • 500$0.51

Quote It

Technical Details

  • Series:WE-LQ
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Wirewound
  • Material - Core:Ferrite
  • Inductance:2.2 µH
  • Tolerance:±20%
  • Current Rating (Amps):1.6 A
  • Current - Saturation (Isat):2.75A
  • Shielding:Unshielded
  • DC Resistance (DCR):110mOhm Max



  • Q @ Freq:40 @ 1MHz
  • Frequency - Self Resonant:80MHz
  • Ratings:-
  • Operating Temperature:-40°C ~ 125°C
  • Inductance Frequency - Test:1 MHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:1812 (4532 Metric)
  • Supplier Device Package:1812
  • Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Height - Seated (Max):0.114" (2.90mm)

Related Products


744045821

FIXED IND 820UH 85MA 20 OHM SMD

  • 1: $0.80000
  • 500: $ 0.51000

0624CDMCCDS-R68MC

FIXED IND 680NH 15A 7 MOHM SMD

0624CDMCCDS-R68MC Datasheet
  • 1: $0.80000
  • 1500: $ 0.22100

CDRH6D28NP-270NC

FIXED IND 27UH 1.05A 142 MOHM

CDRH6D28NP-270NC Datasheet
  • 1: $0.80000
  • 1500: $ 0.34000
  • 3000: $0.32000

CDC5D23BNP-150KC

FIXED IND 15UH 880MA 166 MOHM

CDC5D23BNP-150KC Datasheet
  • 1: $0.80000
  • 2000: $ 0.34000
  • 4000: $0.32000

744045006

FIXED IND 6.8UH 1.1A 200 MOHM

  • 1: $0.80000
  • 500: $ 0.51000

744045471

FIXED IND 470UH 105MA 14.2 OHM

  • 1: $0.80000
  • 500: $ 0.51000

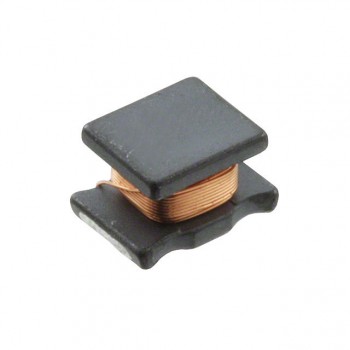

744045222

FIXED IND 2.2MH 40MA 63 OHM SMD

  • 1: $0.80000
  • 500: $ 0.51000

744045008

FIXED IND 8.2UH 1A 250 MOHM SMD

  • 1: $0.80000
  • 500: $ 0.51000

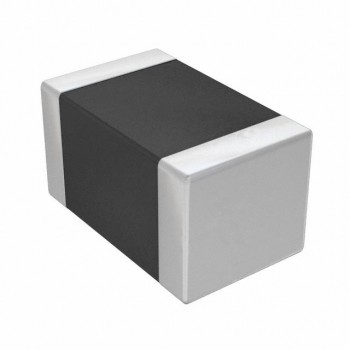

74479775215

FIXED IND 1.5UH 1.1A 200 MOHM

  • 1: $0.80000

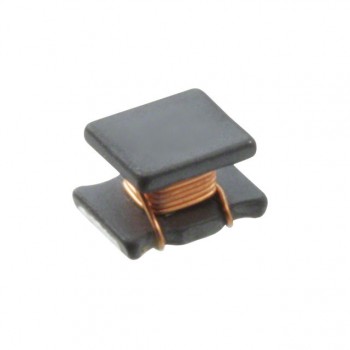

744045003
