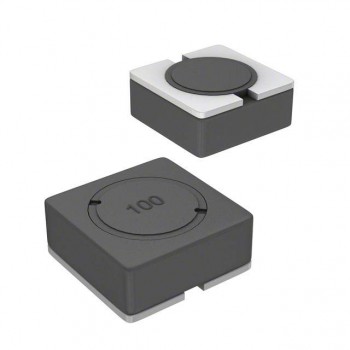

SRR6028-102Y
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1MH 150MA 4.5 OHM SMD
- CategoryFixed Inductors
- Datasheet SRR6028-102Y Datasheet
-
ECAD Model
- Share
In Stock: 2,272
Can ship immediately
Pricing:
- 1$0.84
- 500$0.33916
- 1,000$0.27455
- 2,500$0.2584
- 5,000$0.2527
Quote It
Technical Details
- Series:SRR6028
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:1 mH
- Tolerance:±30%
- Current Rating (Amps):150 mA
- Current - Saturation (Isat):170mA
- Shielding:Shielded
- DC Resistance (DCR):4.5Ohm Max
- Q @ Freq:32 @ 252kHz
- Frequency - Self Resonant:7MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.268" L x 0.268" W (6.80mm x 6.80mm)
- Height - Seated (Max):0.118" (3.00mm)
Related Products

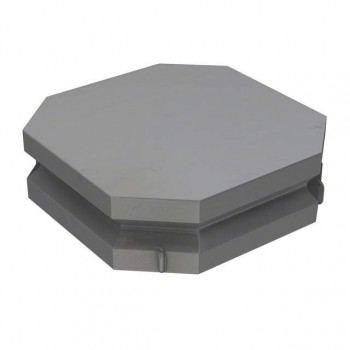

FIXED IND 1.5UH 1.5A 72 MOHM SMD
- 1: $0.84000
- 1000: $ 0.35700
- 3000: $0.33600

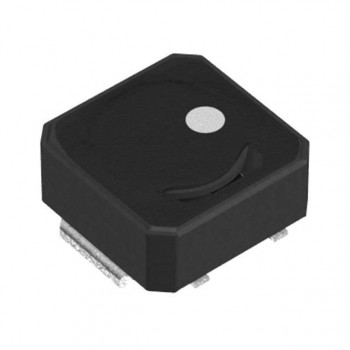

FIXED IND 6.8UH 1.39A 165 MOHM
