SRR0735A-820M

J.W. Miller / Bourns
In Stock: 569

Can ship immediately

Pricing:
  • 1$1.02
  • 1,500$0.3845
  • 3,000$0.36188
  • 7,500$0.3539

Quote It

Technical Details

  • Series:SRR0735A
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Wirewound
  • Material - Core:Ferrite
  • Inductance:82 µH
  • Tolerance:±20%
  • Current Rating (Amps):630 mA
  • Current - Saturation (Isat):650mA
  • Shielding:Shielded
  • DC Resistance (DCR):480mOhm Max



  • Q @ Freq:-
  • Frequency - Self Resonant:-
  • Ratings:AEC-Q200
  • Operating Temperature:-40°C ~ 125°C
  • Inductance Frequency - Test:1 kHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:Nonstandard
  • Supplier Device Package:-
  • Size / Dimension:0.287" L x 0.287" W (7.30mm x 7.30mm)
  • Height - Seated (Max):0.146" (3.70mm)

Related Products


SRR4528A-4R7Y

FIXED IND 4.7UH 2.63A 0.4OHM SMD

SRR4528A-4R7Y Datasheet
  • 1: $1.02000

SRR4528A-181M

FIXED IND 180UH 430MA 1.128 OHM

SRR4528A-181M Datasheet
  • 1: $1.02000

ASPI-8040S-180M-T

FIXED IND 18UH 2.4A 53 MOHM SMD

ASPI-8040S-180M-T Datasheet
  • 1: $0.92000
  • 1000: $ 0.33150
  • 3000: $0.31200

SRR4528A-680M

FIXED IND 68UH 700MA 0.452 OHM

SRR4528A-680M Datasheet
  • 1: $1.02000

SRR4828A-6R8Y

FIXED IND 6.8UH 2.6A 74 MOHM SMD

SRR4828A-6R8Y Datasheet
  • 1: $0.92000

CDRH3D18NP-220NC

FIXED IND 22UH 600MA 424 MOHM

CDRH3D18NP-220NC Datasheet
  • 1: $0.92000
  • 1000: $ 0.39100
  • 3000: $0.36800

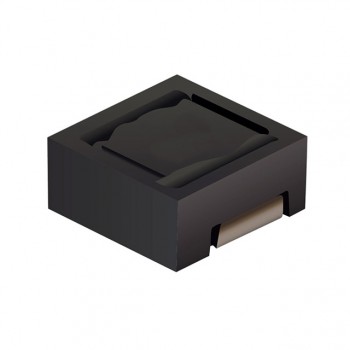

SRR3818A-100M

FIXED IND 10UH 1.3A 235 MOHM SMD

SRR3818A-100M Datasheet
  • 1: $0.92000

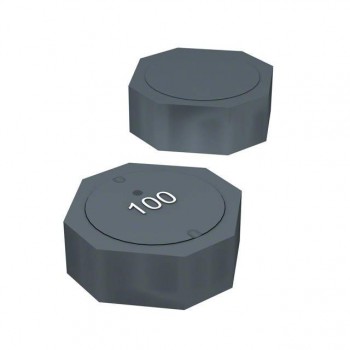

SRU8028-330Y

FIXED IND 33UH 1.3A 147 MOHM SMD

SRU8028-330Y Datasheet
  • 1: $0.92000
  • 1500: $ 0.34680
  • 3000: $0.32640

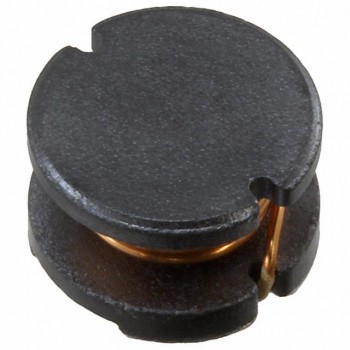

PM75-470K-RC
