PA3779.141HL
PulseLarsen Antenna
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 140NH 56A 0.29 MOHM
- CategoryFixed Inductors
- Datasheet PA3779.141HL Datasheet
-
ECAD Model
- Share
In Stock: 187
Can ship immediately
Pricing:
- 1$1.26
- 10$1.17
- 100$0.846
- 500$0.648
- 1,000$0.576
- 2,500$0.558
Quote It
Technical Details
- Series:PA3779.XXXHL
- Package:Tray
- Part Status:Active
- Type:-
- Material - Core:-
- Inductance:140 nH
- Tolerance:±15%
- Current Rating (Amps):56 A
- Current - Saturation (Isat):86A
- Shielding:Unshielded
- DC Resistance (DCR):0.29mOhm
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 130°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.449" L x 0.276" W (11.40mm x 7.00mm)
- Height - Seated (Max):0.315" (8.00mm)
Related Products

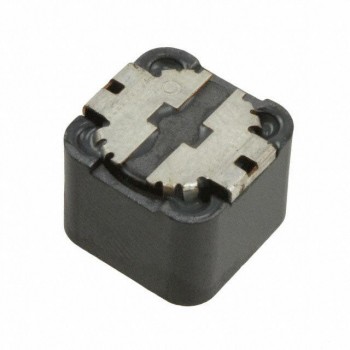

FIXED IND 1.5UH 7.3A 15.4MOHM SM
