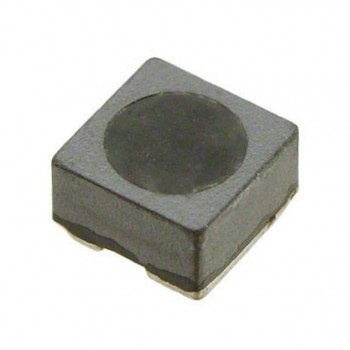

744042680
Würth Elektronik Midcom
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 68UH 500MA 860 MOHM
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 701
Can ship immediately
Pricing:
- 1$1.43
- 800$0.77
Quote It
Technical Details
- Series:WE-TPC
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:68 µH
- Tolerance:±30%
- Current Rating (Amps):500 mA
- Current - Saturation (Isat):380mA
- Shielding:Shielded
- DC Resistance (DCR):860mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:13MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1919 (4848 Metric)
- Supplier Device Package:-
- Size / Dimension:0.189" L x 0.189" W (4.80mm x 4.80mm)
- Height - Seated (Max):0.079" (2.00mm)
