SD6030-220-R
PowerStor (Eaton)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 20.4UH 1.57A 122 MOHM
- CategoryFixed Inductors
- Datasheet SD6030-220-R Datasheet
-
ECAD Model
- Share
In Stock: 478
Can ship immediately
Pricing:
- 1$1.61
- 2,000$0.72
- 4,000$0.6975
- 6,000$0.675
- 10,000$0.6525
Quote It
Technical Details
- Series:SD6030
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:20.4 µH
- Tolerance:±30%
- Current Rating (Amps):1.57 A
- Current - Saturation (Isat):900mA
- Shielding:Shielded
- DC Resistance (DCR):122mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.236" L x 0.236" W (6.00mm x 6.00mm)
- Height - Seated (Max):0.118" (3.00mm)
Related Products
FIXED IND 330NH 16A 5.2 MOHM SMD
- 1: $1.62000
FIXED IND 1.5UH 5.6A 35.6 MOHM
- 1: $1.62000
FIXED IND 1UH 3.44A 32 MOHM SMD

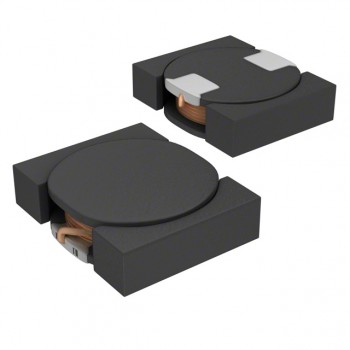

VLF403210MT-1R0N-CA Datasheet- 1: $1.62000
