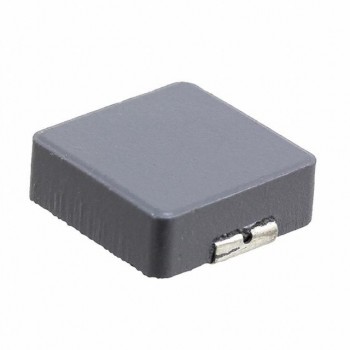

SRP1245A-5R6M
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 5.6UH 11.5A 16.5 MOHM
- CategoryFixed Inductors
- Datasheet SRP1245A-5R6M Datasheet
-
ECAD Model
- Share
In Stock: 605
Can ship immediately
Pricing:
- 1$1.89
- 500$0.80699
- 1,000$0.71732
- 2,500$0.7015
Quote It
Technical Details
- Series:SRP1245A
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Carbonyl Powder
- Inductance:5.6 µH
- Tolerance:±20%
- Current Rating (Amps):11.5 A
- Current - Saturation (Isat):22A
- Shielding:Shielded
- DC Resistance (DCR):16.5mOhm Max
- Q @ Freq:20 @ 100kHz
- Frequency - Self Resonant:13MHz
- Ratings:AEC-Q200
- Operating Temperature:-40°C ~ 150°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.531" L x 0.492" W (13.50mm x 12.50mm)
- Height - Seated (Max):0.197" (5.00mm)
