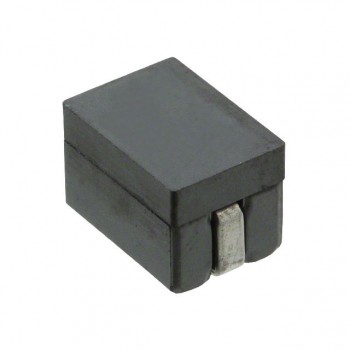

B82477G4474M000
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 470UH 800MA 790 MOHM
- CategoryFixed Inductors
- Datasheet B82477G4474M000 Datasheet
-
ECAD Model
- Share
In Stock: 1,054
Can ship immediately
Pricing:
- 1$1.78
- 400$0.98785
- 800$0.87808
- 1,200$0.85064
- 2,800$0.8232
- 10,000$0.76832
Quote It
Technical Details
- Series:B82477G4
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:470 µH
- Tolerance:±20%
- Current Rating (Amps):800 mA
- Current - Saturation (Isat):950mA
- Shielding:Shielded
- DC Resistance (DCR):790mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.504" L x 0.504" W (12.80mm x 12.80mm)
- Height - Seated (Max):0.315" (8.00mm)
