SRP6030CA-1R2M
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1.2UH 16A 7.4 MOHM SMD
- CategoryFixed Inductors
- Datasheet SRP6030CA-1R2M Datasheet
-
ECAD Model
- Share
In Stock: 1,127
Can ship immediately
Pricing:
- 1$2.04
Quote It
Technical Details
- Series:SRP6030CA
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Iron Powder
- Inductance:1.2 µH
- Tolerance:±20%
- Current Rating (Amps):16 A
- Current - Saturation (Isat):22A
- Shielding:Shielded
- DC Resistance (DCR):7.4mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:47MHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 155°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.260" L x 0.252" W (6.60mm x 6.40mm)
- Height - Seated (Max):0.118" (3.00mm)
Related Products

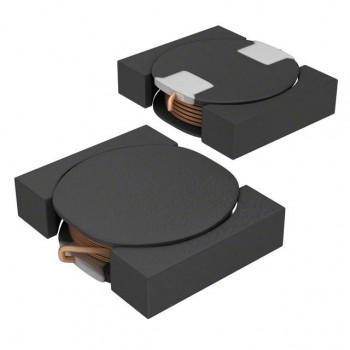

FIXED IND 6.8UH 1.77A 170 MOHM
