7440660022
Würth Elektronik Midcom
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.2UH 6.7A 10.5 MOHM
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 198
Can ship immediately
Pricing:
- 1$1.94
- 800$1.27
Quote It
Technical Details
- Series:WE-TPC
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:2.2 µH
- Tolerance:±30%
- Current Rating (Amps):6.7 A
- Current - Saturation (Isat):6.8A
- Shielding:Shielded
- DC Resistance (DCR):10.5mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:55MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.394" L x 0.394" W (10.00mm x 10.00mm)
- Height - Seated (Max):0.161" (4.10mm)
Related Products

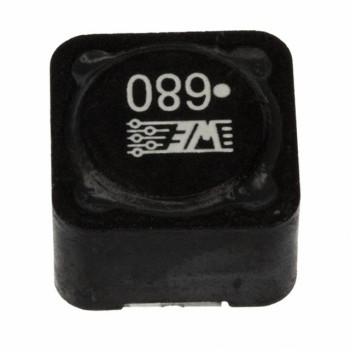

FIXED IND 15UH 2.3A 60 MOHM SMD
