LQW15AN3N0B80D

TOKO / Murata
In Stock: 135

Can ship immediately

Pricing:
  • 1$0.24
  • 10,000$0.0768
  • 30,000$0.0744
  • 50,000$0.072
  • 100,000$0.0696

Quote It

Technical Details

  • Series:LQW15
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Wirewound
  • Material - Core:Non-Magnetic
  • Inductance:3 nH
  • Tolerance:±0.1nH
  • Current Rating (Amps):1.35 A
  • Current - Saturation (Isat):-
  • Shielding:Unshielded
  • DC Resistance (DCR):63mOhm Max



  • Q @ Freq:20 @ 250MHz
  • Frequency - Self Resonant:12.5GHz
  • Ratings:-
  • Operating Temperature:-55°C ~ 125°C
  • Inductance Frequency - Test:100 MHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:0402 (1005 Metric)
  • Supplier Device Package:-
  • Size / Dimension:0.039" L x 0.024" W (1.00mm x 0.60mm)
  • Height - Seated (Max):0.024" (0.60mm)

Related Products


MLF2012DR47KT000

FIXED IND 470NH 200MA 500 MOHM

MLF2012DR47KT000 Datasheet
  • 1: $0.19000
  • 2000: $0.08157
  • 4000: $0.06992

LBM2016TR56J

FIXED IND 560NH 410MA 290 MOHM

LBM2016TR56J Datasheet
  • 1: $0.18000
  • 2000: $ 0.07770
  • 4000: $0.06660

LQW15AN18NG8ZD

FIXED IND 18NH 1.05A 130 MOHM

LQW15AN18NG8ZD Datasheet
  • 1: $0.27000
  • 10000: $0.08820
  • 30000: $0.08544

LQW15AN2N6B8ZD

FIXED IND 2.6NH 1.95A 35 MOHM

LQW15AN2N6B8ZD Datasheet
  • 1: $0.27000
  • 10000: $0.08820
  • 30000: $0.08544

LQG18HN68NJ00D

FIXED IND 68NH 300MA 800 MOHM

LQG18HN68NJ00D Datasheet
  • 1: $0.23000
  • 4000: $0.08224
  • 8000: $0.07767

MAKK2016T2R2M

FIXED IND 2.2UH 1.5A 160 MOHM

MAKK2016T2R2M Datasheet
  • 1: $0.22000
  • 3000: $ 0.07992
  • 6000: $0.07548

MAKK2016T3R3M

FIXED IND 3.3UH 1.2A 255 MOHM

MAKK2016T3R3M Datasheet
  • 1: $0.22000
  • 3000: $ 0.07992

CB2012T6R8M

FIXED IND 6.8UH 540MA 611 MOHM

CB2012T6R8M Datasheet
  • 1: $0.22000
  • 3000: $ 0.08100
  • 6000: $0.07650

LQM18PN2R2MFRL

FIXED IND 2.2UH 750MA 375 MOHM

LQM18PN2R2MFRL Datasheet
  • 1: $0.24000
  • 4000: $0.09112
  • 8000: $0.08576

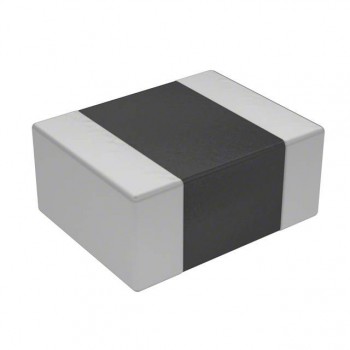

LQM2MPN4R7MG0L
