LQW18AN56NG8ZD
TOKO / Murata
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 56NH 770MA 260 MOHM
- CategoryFixed Inductors
- Datasheet LQW18AN56NG8ZD Datasheet
-
ECAD Model
- Share
In Stock: 151
Can ship immediately
Pricing:
- 1$0.3
- 4,000$0.11333
- 8,000$0.10667
- 12,000$0.10333
- 28,000$0.1
- 100,000$0.09333
Quote It
Technical Details
- Series:LQW18
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Non-Magnetic
- Inductance:56 nH
- Tolerance:±2%
- Current Rating (Amps):770 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):260mOhm Max
- Q @ Freq:38 @ 200MHz
- Frequency - Self Resonant:2.6GHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0603 (1608 Metric)
- Supplier Device Package:0603 (1608 Metric)
- Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
- Height - Seated (Max):0.039" (1.00mm)
Related Products
FIXED IND 240NH 5.4A 26 MOHM SMD
DFE201610P-R24M=P2 Datasheet- 1: $0.32000
- 3000: $0.17358
- 6000: $0.16817

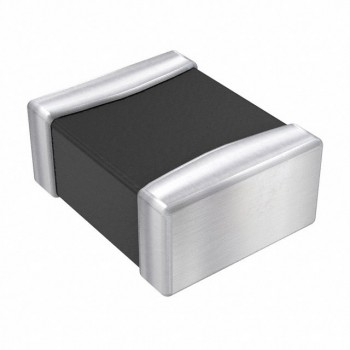

FIXED IND 240NH 6.5A 23 MOHM SMD
