B82144A2476J000
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 47MH 30MA 230 OHM TH
- CategoryFixed Inductors
- Datasheet B82144A2476J000 Datasheet
-
ECAD Model
- Share
In Stock: 125
Can ship immediately
Pricing:
- 1$0.63
- 1,500$0.31909
- 3,000$0.30032
- 7,500$0.29093
- 10,500$0.28155
Quote It
Technical Details
- Series:LBC
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:47 mH
- Tolerance:±5%
- Current Rating (Amps):30 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):230Ohm Max
- Q @ Freq:40 @ 79.6kHz
- Frequency - Self Resonant:180kHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:10 kHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Axial
- Supplier Device Package:-
- Size / Dimension:0.205" Dia x 0.472" L (5.20mm x 12.00mm)
- Height - Seated (Max):-
Related Products

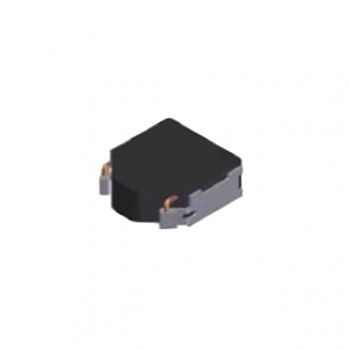

FIXED IND 1.5UH 4.3A 36 MOHM SMD
