SRP1265A-8R2M
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 8.2UH 10.5A 15.5 MOHM
- CategoryFixed Inductors
- Datasheet SRP1265A-8R2M Datasheet
-
ECAD Model
- Share
In Stock: 203
Can ship immediately
Pricing:
- 1$1.82
- 500$0.75944
- 1,000$0.67505
- 2,500$0.66016
Quote It
Technical Details
- Series:SRP1265A
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Carbonyl Powder
- Inductance:8.2 µH
- Tolerance:±20%
- Current Rating (Amps):10.5 A
- Current - Saturation (Isat):16A
- Shielding:Shielded
- DC Resistance (DCR):15.5mOhm Max
- Q @ Freq:20 @ 100kHz
- Frequency - Self Resonant:11MHz
- Ratings:AEC-Q200
- Operating Temperature:-40°C ~ 150°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.531" L x 0.492" W (13.50mm x 12.50mm)
- Height - Seated (Max):0.252" (6.40mm)
Related Products
FIXED IND 2.6UH 3A 30 MOHM SMD
- 1: $1.46000
- 400: $ 0.89000
- 800: $0.79000
FIXED IND 68UH 750MA 350 MOHM
- 1: $1.46000
- 400: $ 0.89000
- 800: $0.79000

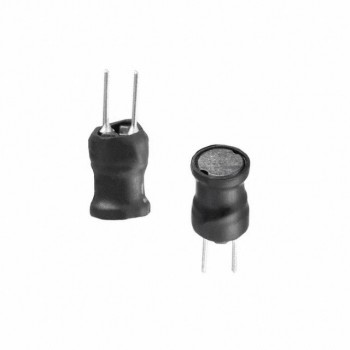

FIXED IND 10UH 2.5A 80 MOHM TH
