MLG1005S2N7CT000
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.7NH 800MA 150 MOHM
- CategoryFixed Inductors
- Datasheet MLG1005S2N7CT000 Datasheet
-
ECAD Model
- Share
In Stock: 209
Can ship immediately
Pricing:
- 1$0.1
- 10,000$0.0176
- 30,000$0.01705
- 50,000$0.0165
- 100,000$0.01595
Quote It
Technical Details
- Series:MLG
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Multilayer
- Material - Core:Ceramic, Non-Magnetic
- Inductance:2.7 nH
- Tolerance:±0.2nH
- Current Rating (Amps):800 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):150mOhm Max
- Q @ Freq:7 @ 100MHz
- Frequency - Self Resonant:6GHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0402 (1005 Metric)
- Supplier Device Package:0402 (1005 Metric)
- Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
- Height - Seated (Max):0.022" (0.55mm)
Related Products
FIXED IND 15NH 150MA 1.1 OHM SMD
AIMC-0201-15NJ-T Datasheet- 1: $0.10000
- 15000: $ 0.02080
- 30000: $0.02015
FIXED IND 150NH 50MA 8 OHM SMD

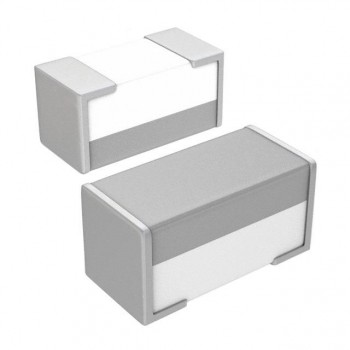

MLG0603SR15JT000 Datasheet- 1: $0.10000
- 15000: $ 0.02400
- 30000: $0.02325
FIXED IND 10NH 140MA 2.5 OHM SMD

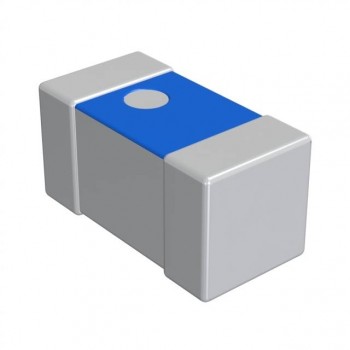

LQP02TN10NH02D Datasheet- 1: $0.10000
