LQH2MPZ2R2MGRL
TOKO / Murata
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.2UH 680MA 468 MOHM
- CategoryFixed Inductors
- Datasheet LQH2MPZ2R2MGRL Datasheet
-
ECAD Model
- Share
In Stock: 188
Can ship immediately
Pricing:
- 1$0.32
- 3,000$0.119
- 6,000$0.112
- 15,000$0.1085
- 30,000$0.105
- 75,000$0.1015
Quote It
Technical Details
- Series:LQH2
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:2.2 µH
- Tolerance:±20%
- Current Rating (Amps):680 mA
- Current - Saturation (Isat):1.18A
- Shielding:Shielded
- DC Resistance (DCR):468mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:50MHz
- Ratings:AEC-Q200
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:1 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0806 (2016 Metric)
- Supplier Device Package:0806 (2016 Metric)
- Size / Dimension:0.079" L x 0.063" W (2.00mm x 1.60mm)
- Height - Seated (Max):0.037" (0.95mm)
Related Products
FIXED IND 100NH 1A 160 MOHM SMD
AISC-1008HQ-R10J-T Datasheet- 1: $0.31000
- 2000: $ 0.12780
- 4000: $0.12070

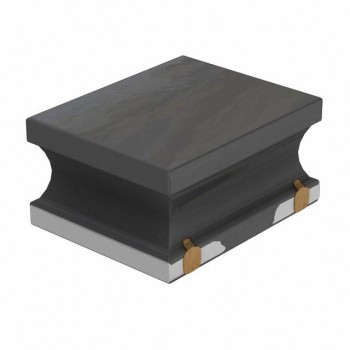

FIXED IND 470NH 2.81A 41 MOHM
