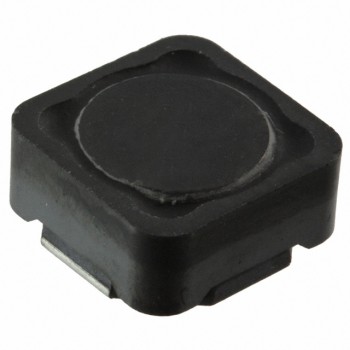

DRA124-221-R
PowerStor (Eaton)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 220UH 865MA 568 MOHM
- CategoryFixed Inductors
- Datasheet DRA124-221-R Datasheet
-
ECAD Model
- Share
In Stock: 156
Can ship immediately
Pricing:
- 1$2.86
- 750$1.3728
- 1,500$1.3299
- 3,750$1.287
- 5,250$1.2441
Quote It
Technical Details
- Series:DRA
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:-
- Inductance:220 µH
- Tolerance:±20%
- Current Rating (Amps):865 mA
- Current - Saturation (Isat):1.363A
- Shielding:Shielded
- DC Resistance (DCR):568mOhm
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:AEC-Q200
- Operating Temperature:-40°C ~ 165°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.492" L x 0.492" W (12.50mm x 12.50mm)
- Height - Seated (Max):0.177" (4.50mm)
