74476604
Würth Elektronik Midcom
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 4.7UH 315MA 1 OHM SMD
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 150
Can ship immediately
Pricing:
- 1$0.462
Quote It
Technical Details
- Series:WE-GF
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:4.7 µH
- Tolerance:±10%
- Current Rating (Amps):315 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):1Ohm Max
- Q @ Freq:50 @ 7.96MHz
- Frequency - Self Resonant:78MHz
- Ratings:-
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:7.96 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1812 (4532 Metric)
- Supplier Device Package:1812
- Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
- Height - Seated (Max):0.142" (3.60mm)
Related Products
FIXED IND 3.3UH 2.1A 54 MOHM SMD
CDRH2D18/LDNP-3R3NC Datasheet- 1: $1.02000
- 1000: $ 0.46400
- 3000: $0.44950

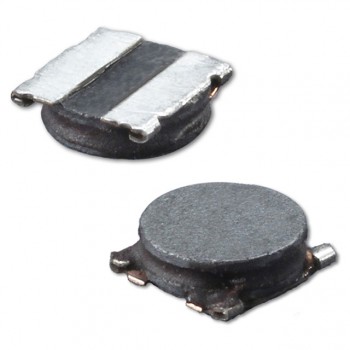

FIXED IND 6.8UH 1.3A 260 MOHM
