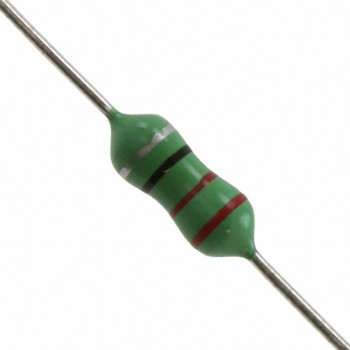

77F120K-TR-RC

Technical Details

• Series:77F
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:Wirewound
• Material - Core:Ferrite
• Inductance:12 µH
• Tolerance:±10%
• Current Rating (Amps):480 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):700mOhm Max

• Q @ Freq:75 @ 2.52MHz
• Frequency - Self Resonant:34MHz
• Ratings:-
• Operating Temperature:-55°C ~ 105°C
• Inductance Frequency - Test:2.52 MHz
• Features:-
• Mounting Type:Through Hole
• Package / Case:Axial
• Supplier Device Package:-
• Size / Dimension:0.157" Dia x 0.410" L (3.99mm x 10.41mm)
• Height - Seated (Max):-
