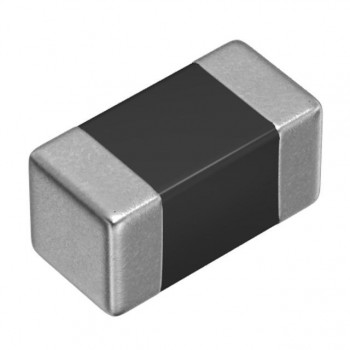

MLF1005G1R0JT

Technical Details

• Series:MLF
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:Multilayer
• Material - Core:Ferrite
• Inductance:1 µH
• Tolerance:±5%
• Current Rating (Amps):40 mA
• Current - Saturation (Isat):-
• Shielding:Shielded
• DC Resistance (DCR):640mOhm Max

• Q @ Freq:30 @ 10MHz
• Frequency - Self Resonant:120MHz
• Ratings:-
• Operating Temperature:-55°C ~ 125°C
• Inductance Frequency - Test:10 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:0402 (1005 Metric)
• Supplier Device Package:0402 (1005 Metric)
• Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
• Height - Seated (Max):0.022" (0.55mm)
