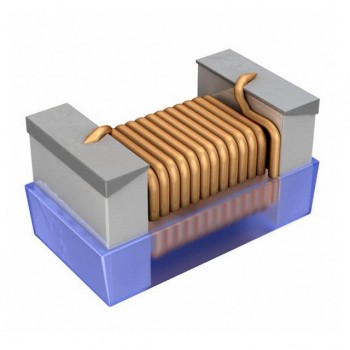

AISC-0603F-R20J-T

Technical Details

• Series:AISC-0603F
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:Wirewound
• Material - Core:Ferrite
• Inductance:200 nH
• Tolerance:±5%
• Current Rating (Amps):740 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):140mOhm Max

• Q @ Freq:-
• Frequency - Self Resonant:1.03GHz
• Ratings:-
• Operating Temperature:-40°C ~ 85°C
• Inductance Frequency - Test:7.9 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:0603 (1608 Metric)
• Supplier Device Package:0603 (1608 Metric)
• Size / Dimension:0.063" L x 0.039" W (1.60mm x 1.00mm)
• Height - Seated (Max):0.047" (1.20mm)
