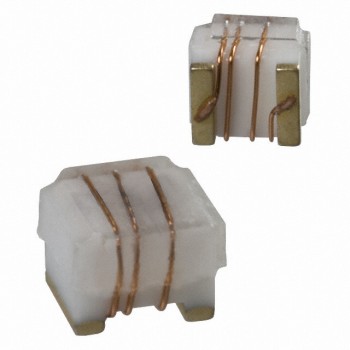

PM1008-R22K-RC

Technical Details

• Series:PM1008
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:Wirewound
• Material - Core:Ceramic
• Inductance:220 nH
• Tolerance:±10%
• Current Rating (Amps):500 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):450mOhm

• Q @ Freq:45 @ 100MHz
• Frequency - Self Resonant:700MHz
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:25 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:1008 (2520 Metric)
• Supplier Device Package:1008 (2520 Metric)
• Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
• Height - Seated (Max):0.071" (1.80mm)
