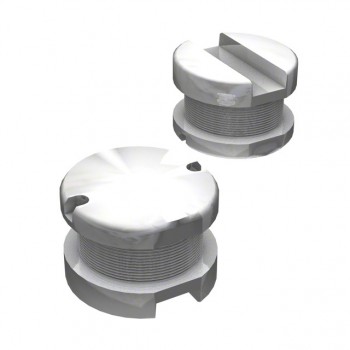

SDR0603-181KL

Technical Details

• Series:SDR0603
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:Wirewound
• Material - Core:Ferrite
• Inductance:180 µH
• Tolerance:±10%
• Current Rating (Amps):300 mA
• Current - Saturation (Isat):500mA
• Shielding:Unshielded
• DC Resistance (DCR):1.6Ohm Max

• Q @ Freq:26 @ 796kHz
• Frequency - Self Resonant:7MHz
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:1 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.228" L x 0.228" W (5.80mm x 5.80mm)
• Height - Seated (Max):0.154" (3.90mm)
