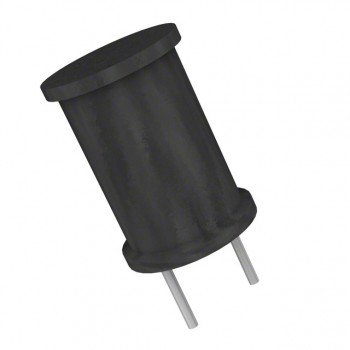

AIUR-11-221K
Abracon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 220UH 800MA 353 MOHM
- CategoryFixed Inductors
- Datasheet AIUR-11-221K Datasheet
-
ECAD Model
- Share
In Stock: 182
Can ship immediately
Pricing:
- 1$0.26112
- 1,000$0.26112
Quote It
Technical Details
- Series:AIUR-11
- Package:Bulk
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:220 µH
- Tolerance:±10%
- Current Rating (Amps):800 mA
- Current - Saturation (Isat):860mA
- Shielding:Unshielded
- DC Resistance (DCR):353mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 85°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Radial, Vertical Cylinder
- Supplier Device Package:-
- Size / Dimension:0.375" Dia (9.53mm)
- Height - Seated (Max):0.450" (11.43mm)
