AIUR-11-122K
Abracon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1.2MH 246MA 2.4 OHM TH
- CategoryFixed Inductors
- Datasheet AIUR-11-122K Datasheet
-
ECAD Model
- Share
In Stock: 136
Can ship immediately
Pricing:
- 1$0.26112
- 1,260$0.26112
Quote It
Technical Details
- Series:AIUR-11
- Package:Bulk
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:1.2 mH
- Tolerance:±10%
- Current Rating (Amps):246 mA
- Current - Saturation (Isat):360mA
- Shielding:Unshielded
- DC Resistance (DCR):2.4Ohm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 85°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Radial, Vertical Cylinder
- Supplier Device Package:-
- Size / Dimension:0.375" Dia (9.53mm)
- Height - Seated (Max):0.450" (11.43mm)
Related Products
FIXED IND 18.5NH 4A 3.9 MOHM SMD
AIAC-1512C-18N5J-T Datasheet- 1: $0.26112
- 2000: $0.26112
- 4000: $0.24576

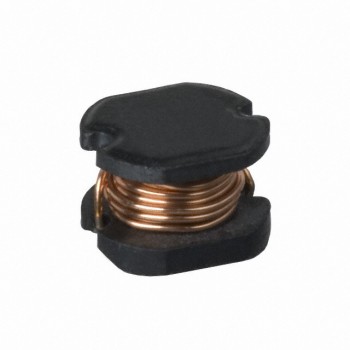

FIXED IND 2.2UH 2.6A 47 MOHM SMD
