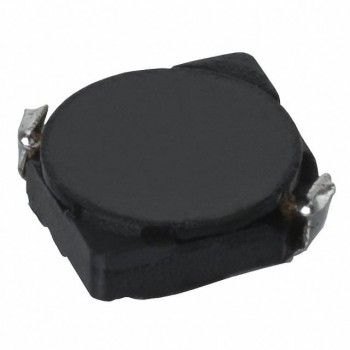

CDRH4D18NP-470NC
Sumida Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 47UH 280MA 922 MOHM
- CategoryFixed Inductors
- Datasheet CDRH4D18NP-470NC Datasheet
-
ECAD Model
- Share
In Stock: 143
Can ship immediately
Pricing:
- 1$0.2873
- 1,000$0.2873
Quote It
Technical Details
- Series:CDRH4D18
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:-
- Material - Core:Ferrite
- Inductance:47 µH
- Tolerance:±30%
- Current Rating (Amps):280 mA
- Current - Saturation (Isat):-
- Shielding:Shielded
- DC Resistance (DCR):922mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 100°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.185" L x 0.185" W (4.70mm x 4.70mm)
- Height - Seated (Max):0.079" (2.00mm)
