AMDLA7030Q-R56MT

Abracon
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionFIXED IND 560NH 15A 4.5 MOHM SMD
  • CategoryFixed Inductors
  • ECAD Model
  • Share
In Stock: 165

Can ship immediately

Pricing:
  • 1$0.54374

Quote It

Technical Details

  • Series:AMDLA7030Q
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Type:Molded
  • Material - Core:Metal
  • Inductance:560 nH
  • Tolerance:±20%
  • Current Rating (Amps):15 A
  • Current - Saturation (Isat):16A
  • Shielding:Shielded
  • DC Resistance (DCR):4.5mOhm Max



  • Q @ Freq:-
  • Frequency - Self Resonant:-
  • Ratings:AEC-Q200
  • Operating Temperature:-55°C ~ 155°C
  • Inductance Frequency - Test:100 kHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:Nonstandard
  • Supplier Device Package:-
  • Size / Dimension:0.280" L x 0.260" W (7.10mm x 6.60mm)
  • Height - Seated (Max):0.118" (3.00mm)

Related Products


AMDLA7030Q-2R7MT

FIXED IND 2.7UH 7A 20 MOHM SMD

  • 1: $0.54374

AMDLA7030Q-R68MT

FIXED IND 680NH 14.5A 5.3 MOHM

  • 1: $0.54374

AMDLA7030Q-330MT

FIXED IND 33UH 1.8A 258 MOHM SMD

  • 1: $0.54374

AMDLA7030Q-R47MT

FIXED IND 470NH 16A 4 MOHM SMD

  • 1: $0.54374

AMDLA7030Q-R82MT

FIXED IND 820NH 13A 6 MOHM SMD

  • 1: $0.54374

AMDLA7030Q-8R2MT

FIXED IND 8.2UH 4A 60 MOHM SMD

  • 1: $0.54374

AMDLA7030Q-R33MT

FIXED IND 330NH 20A 3.4 MOHM SMD

  • 1: $0.54374

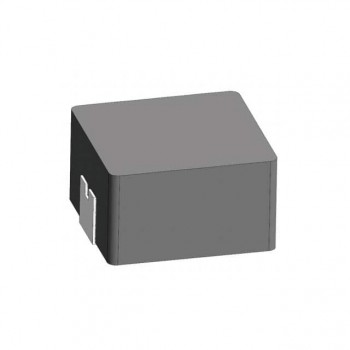

AMDLA7030Q-R22MT

FIXED IND 220NH 21A 2.5 MOHM SMD

  • 1: $0.54374

AMDLA7030Q-1R2MT

FIXED IND 1.2UH 9.5A 9.5 MOHM

  • 1: $0.54374

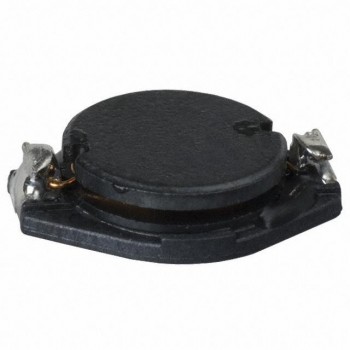

PM3308-220M-RC
