AMDLA7030Q-8R2MT
Abracon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 8.2UH 4A 60 MOHM SMD
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 100
Can ship immediately
Pricing:
- 1$0.54374
Quote It
Technical Details
- Series:AMDLA7030Q
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Molded
- Material - Core:Metal
- Inductance:8.2 µH
- Tolerance:±20%
- Current Rating (Amps):4 A
- Current - Saturation (Isat):4.7A
- Shielding:Shielded
- DC Resistance (DCR):60mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 155°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.280" L x 0.260" W (7.10mm x 6.60mm)
- Height - Seated (Max):0.118" (3.00mm)
Related Products
FIXED IND 330NH 20A 3.4 MOHM SMD
- 1: $0.54374
FIXED IND 220NH 21A 2.5 MOHM SMD
- 1: $0.54374
FIXED IND 1.2UH 9.5A 9.5 MOHM
- 1: $0.54374
FIXED IND 150NH 26A 2.5 MOHM SMD

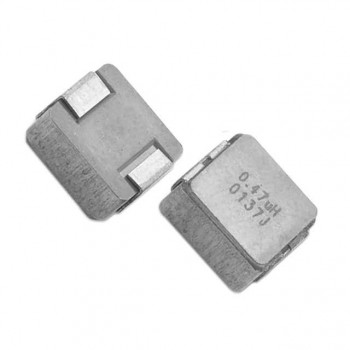

IHLP2525CZERR15M01 Datasheet- 1: $0.54400
- 2000: $0.54400
- 4000: $0.52645
FIXED IND 2.2UH 9A 16.5 MOHM SMD

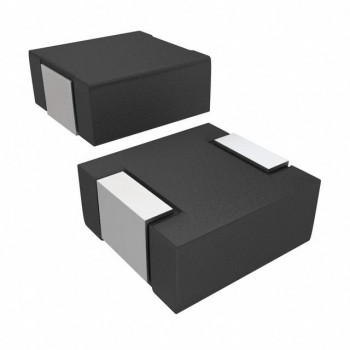

IHLP2525CZER2R2M11 Datasheet- 1: $0.54400
