PM3308-680M-RC
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 68UH 700MA 700MOHM SMD
- CategoryFixed Inductors
- Datasheet PM3308-680M-RC Datasheet
-
ECAD Model
- Share
In Stock: 153
Can ship immediately
Pricing:
- 1$0.544
- 1,000$0.4624
- 3,000$0.4522
Quote It
Technical Details
- Series:PM3308
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:68 µH
- Tolerance:±20%
- Current Rating (Amps):700 mA
- Current - Saturation (Isat):900mA
- Shielding:Unshielded
- DC Resistance (DCR):700mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.512" L x 0.374" W (13.00mm x 9.50mm)
- Height - Seated (Max):0.118" (3.00mm)
Related Products
FIXED IND 150NH 26A 2.5 MOHM SMD
IHLP2525CZERR15M01 Datasheet- 1: $0.54400
- 2000: $0.54400
- 4000: $0.52645
FIXED IND 2.2UH 9A 16.5 MOHM SMD
IHLP2525CZER2R2M11 Datasheet- 1: $0.54400
- 2000: $0.54400
- 4000: $0.52700
FIXED IND 8.2UH 5A 54.9 MOHM SMD
IHLP2525CZER8R2M11 Datasheet- 1: $0.54400
- 2000: $0.54400
- 4000: $0.52700
FIXED IND 330NH 13A 5.9 MOHM SMD

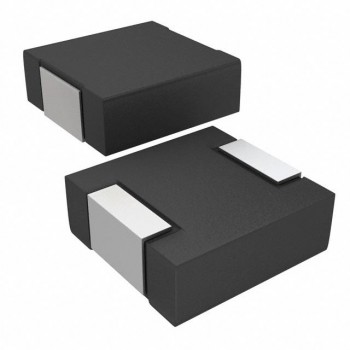

IHLP2020BZERR33M11 Datasheet- 1: $1.19000
- 2000: $0.99200
- 4000: $0.96000
FIXED IND 10UH 3A 97.71 MOHM SMD
IHLP2525CZER100M06 Datasheet- 1: $0.54400
- 2000: $0.54400
- 4000: $0.52645
FIXED IND 10UH 3A 97.71 MOHM SMD

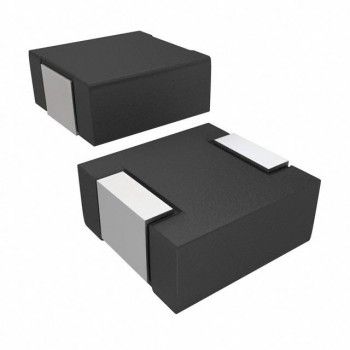

IHLP2525CZER100M07 Datasheet- 1: $0.54400
