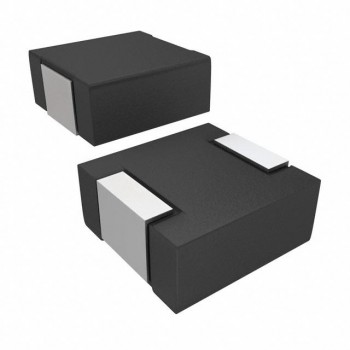

IHLP2525CZERR33M07
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 330NH 20A 3.2 MOHM SMD
- CategoryFixed Inductors
- Datasheet IHLP2525CZERR33M07 Datasheet
-
ECAD Model
- Share
In Stock: 188
Can ship immediately
Pricing:
- 1$0.544
- 2,000$0.544
- 4,000$0.52645
- 6,000$0.5089
Quote It
Technical Details
- Series:IHLP-2525CZ-07
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Molded
- Material - Core:-
- Inductance:330 nH
- Tolerance:±20%
- Current Rating (Amps):20 A
- Current - Saturation (Isat):30A
- Shielding:Shielded
- DC Resistance (DCR):3.2mOhm
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.270" L x 0.255" W (6.86mm x 6.47mm)
- Height - Seated (Max):0.118" (3.00mm)
