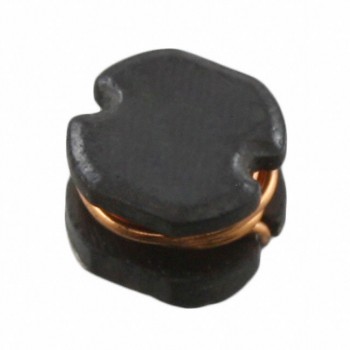

B82442T1393K000
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 39UH 720MA 456 MOHM
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 130
Can ship immediately
Pricing:
- 1$0.60104
Quote It
Technical Details
- Series:SIMID
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:39 µH
- Tolerance:±10%
- Current Rating (Amps):720 mA
- Current - Saturation (Isat):1.55A
- Shielding:Unshielded
- DC Resistance (DCR):456mOhm Max
- Q @ Freq:15 @ 2.52MHz
- Frequency - Self Resonant:9MHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 150°C
- Inductance Frequency - Test:2.52 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:2-SMD, J-Lead
- Supplier Device Package:-
- Size / Dimension:0.220" L x 0.197" W (5.60mm x 5.00mm)
- Height - Seated (Max):0.209" (5.30mm)
