SRR1206-561KL
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 560UH 450MA 1.32OHM SM
- CategoryFixed Inductors
- Datasheet SRR1206-561KL Datasheet
-
ECAD Model
- Share
In Stock: 190
Can ship immediately
Pricing:
- 1$0.5544
- 600$0.518
Quote It
Technical Details
- Series:SRR1206
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:560 µH
- Tolerance:±10%
- Current Rating (Amps):450 mA
- Current - Saturation (Isat):800mA
- Shielding:Shielded
- DC Resistance (DCR):1.32Ohm Max
- Q @ Freq:13 @ 796kHz
- Frequency - Self Resonant:2MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.500" L x 0.500" W (12.70mm x 12.70mm)
- Height - Seated (Max):0.256" (6.50mm)
Related Products

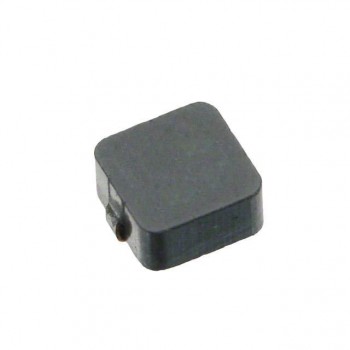

FIXED IND 220NH 25A 1.9MOHM SMD
