PM4342.681NLT
PulseLarsen Antenna
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 680NH 22A 2.7 MOHM SMD
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 156
Can ship immediately
Pricing:
- 1$0.6138
Quote It
Technical Details
- Series:PM4342.XXXNLT
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Molded
- Material - Core:-
- Inductance:680 nH
- Tolerance:±20%
- Current Rating (Amps):22 A
- Current - Saturation (Isat):39A
- Shielding:Shielded
- DC Resistance (DCR):2.7mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.453" L x 0.406" W (11.50mm x 10.30mm)
- Height - Seated (Max):0.157" (4.00mm)
Related Products
FIXED IND 390NH 30A 1.3 MOHM SMD
- 1: $0.61380
FIXED IND 680NH 16.5A 5.76 MOHM
IHLP2525CZERR68M51 Datasheet- 1: $0.55840
- 2000: $0.55840
- 4000: $0.54039
FIXED IND 10UH 4A 76.9 MOHM SMD
IHLP2525CZER100M51 Datasheet- 1: $0.55840
- 2000: $0.55840
- 4000: $0.54039
FIXED IND 820NH 13.8A 7.22 MOHM
IHLP2525CZERR82M51 Datasheet- 1: $0.55840
- 2000: $0.55840
- 4000: $0.54039
FIXED IND 15UH 2.9A 127 MOHM SMD

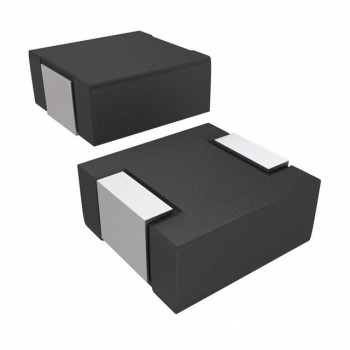

IHLP2525CZER150M51 Datasheet- 1: $0.55840
